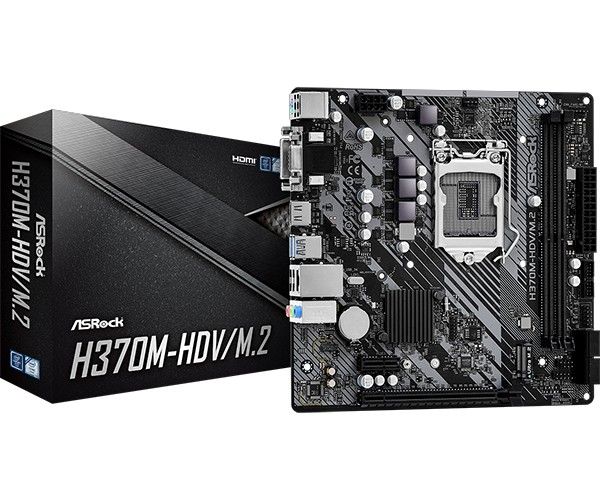

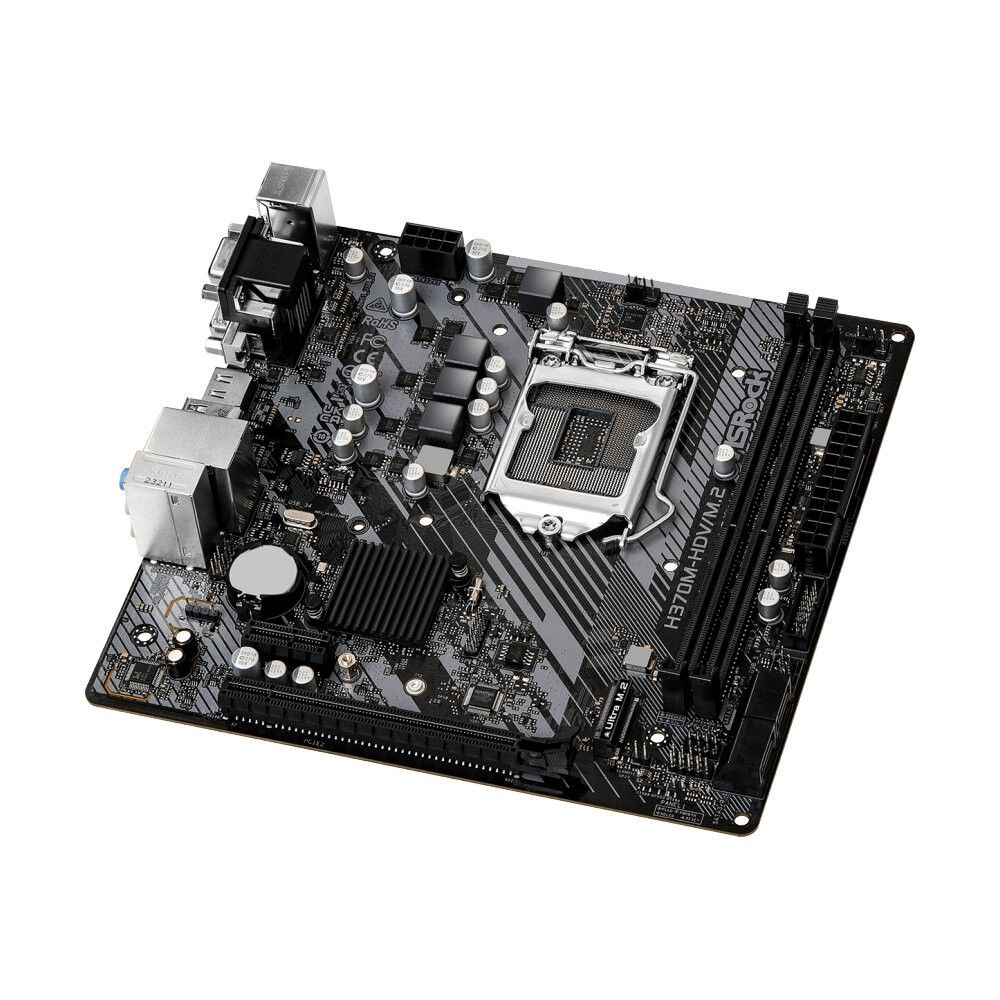

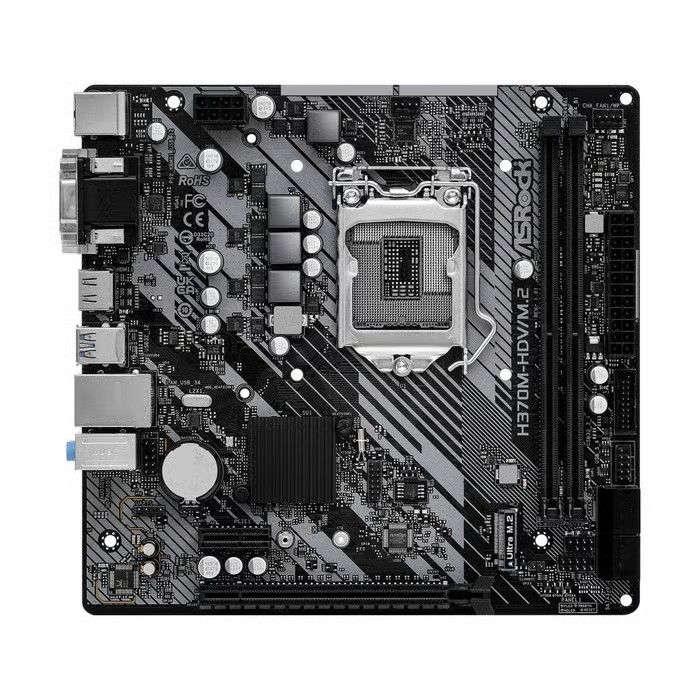

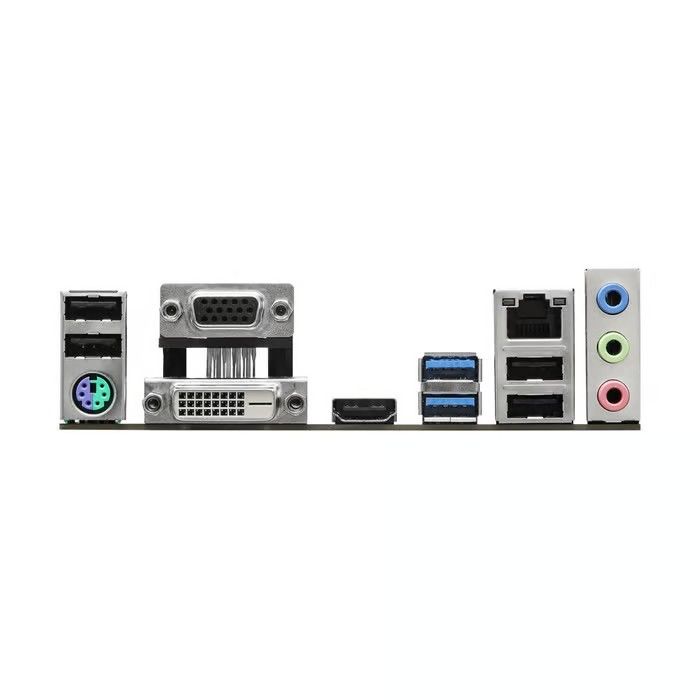

คุณสมบัติ MAINBOARD (1151V2) ASROCK H370M-HDV/M.2 DDR4 แบรนด์ / โมเดล Brand ASROCK Model H370M-HDV/M.2 (DDR4) ข้อมูลจำเพาะ CPU Support Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151) Supports CPU up to 95W Supports Intel® Turbo Boost 2.0 Technology CPU Brand Intel Socket 1151V2 Chipset Intel H370 Memory Support Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory Max. capacity of system memory: 64GB Supports Intel® Extreme Memory Profile (XMP) 2.0 Maximum Memory Bus 2666 Graphics 1 x HDMI 1.4, supports HDCP 2.2, 4K Ultra HD (UHD) playback and max. resolution up to 4K 30Hz 1 x DVI-D, supports HDCP 2.2 and max. resolution up to Full HD (1920x1200) 60Hz 1 x D-Sub, supports max. resolution up to Full HD (1920x1200) 60Hz *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated. Multi Graphic Support N/A Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec) Expansion Slots CPU: 1 x PCIe 3.0 x16 Slot (PCIE2), supports x16 mode* Chipset: 1 x PCIe 3.0 x1 Slot (PCIE1) *Supports NVMe SSD as boot disks Maximum PCIe Version PCIe 3.0 Storage Chipset: 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes* 4 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices M.2 Storage Type Support NVMe, SATA M.2 Slot 1 Special Features Rock-Solid Durability - 4 Power Phase EZ Update - ASRock Auto Driver Installer Software Features Software - ASRock Motherboard Utility (A-Tuning) UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. Operating System Support Microsoft Windows® 10 64-bit / 11 64-bit การเชื่อมต่อ USB 4 x USB 3.2 Gen1 (2 Rear, 2 Front) 6 x USB 2.0 (4 Rear, 2 Front) *All USB ports support ESD Protection Internal I/O Connectors 1 x SPI TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) *CPU_FAN1 supports the fan power up to 1A (12W). **CHA_FAN1/WP supports the fan power up to 2A (24W). CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. Back Panel Connectors 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port 4 x USB 2.0 Ports 2 x USB 3.2 Gen1 Ports 1 x RJ-45 LAN Port HD Audio Jacks: Line in / Front Speaker / Microphone LAN Gigabit LAN 10/100/1000 Mb/s Realtek 8111H Wireless Data Network None กำลังไฟ Internal I/O Connectors 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector ข้อมูลทั่วไป Dimension (cm) (W x L x H) : 20.10 x 19.10 x 0.00 cm Package Dimension (cm) (W x L x H) : 23.50 x 27.50 x 5.50 cm Form Factor Micro ATX Net Weight (kg) 0.00 kg Gross Weight (kg) 0.66 kg Volume (cm³) 3,554.38 cm³ Package Contents 1 x User Manual 1 x I/O Shield 2 x SATA Data Cables 1 x Screw for M.2 Socket BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support H/W Monitoring N/A
